ATV RAMP LR002
ATV RAMP » LR002
Click to enlarge

Pictures available of ATV RAMP:

LR002

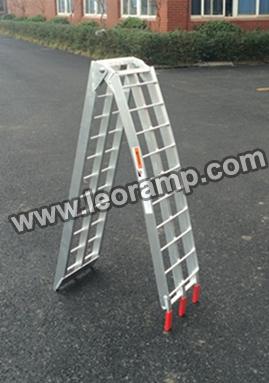

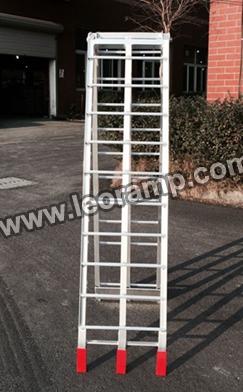

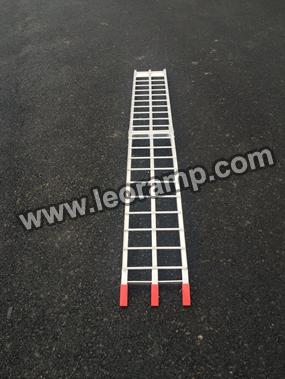

ATV RAMP

Folding Ramps
All aluminium design lightweight ramp.Constructed of 6061 aluminium.
Adjustable attachment straps.

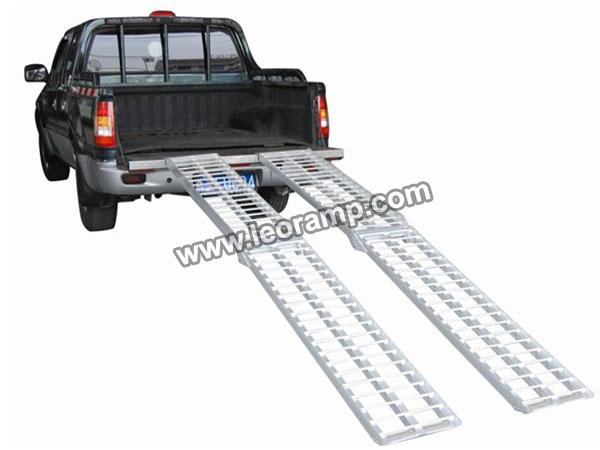

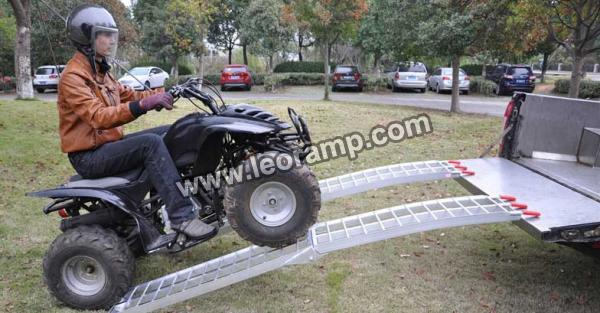

Suitable for lawnmowers,ATV/dirt bikes and other wheeled garden machinery/Use as pair.
Suitable for motorcycle,scooter and other two wheel garden machinery/Use as piece.

Enquiry Now

ATV RAMP Details

ATV loading ramp
1.Loading capacity:  680KG(1,500lbs) /PAIR, 340KG(750lbs)/ PC
2.Ramp dimensions: 225cm(88.6") long, 31cm(12.2") wide

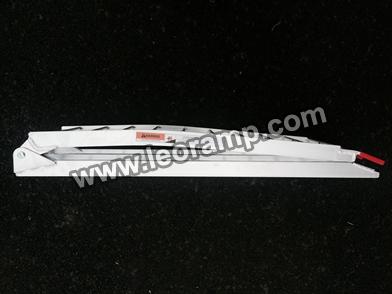

3. Folded Length: 116cm(45.7")
4.Min. order quantity:100 pairs
5.N.W : 7 KG/ PC
6.G.W : 16 KG/CTN
7.Packing dimensions: 117x 28 x 31cm/pair
8.Conveyance: 280 PAIRS/20' GP: 640 PAIRS/ 40' HC
9. Remark: With CE certificate.
Can be processed into different dimensions based on customers' requirements
